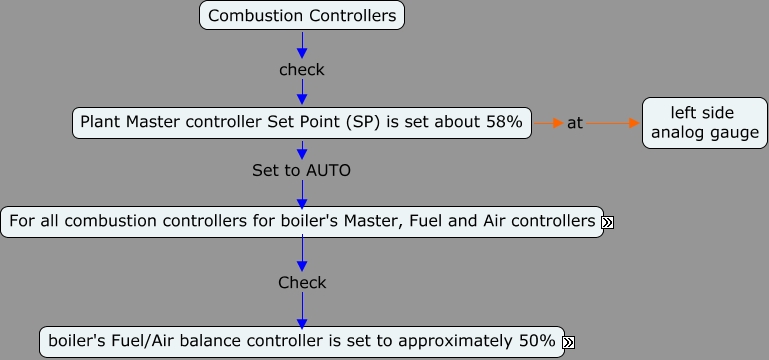

This Concept Map, created with IHMC CmapTools, has information related to: Node_03d comb ctrlls, Plant Master controller Set Point (SP) is set about 58% Set to AUTO For all combustion controllers for boiler's Master, Fuel and Air controllers, For all combustion controllers for boiler's Master, Fuel and Air controllers *NOTE Plant Master only operates in AUTO, For all combustion controllers for boiler's Master, Fuel and Air controllers Check boiler's Fuel/Air balance controller is set to approximately 50%, Plant Master controller Set Point (SP) is set about 58% at left side analog gauge, Combustion Controllers check Plant Master controller Set Point (SP) is set about 58%, boiler's Fuel/Air balance controller is set to approximately 50% To view status of each controller click STATUS on the plant master
