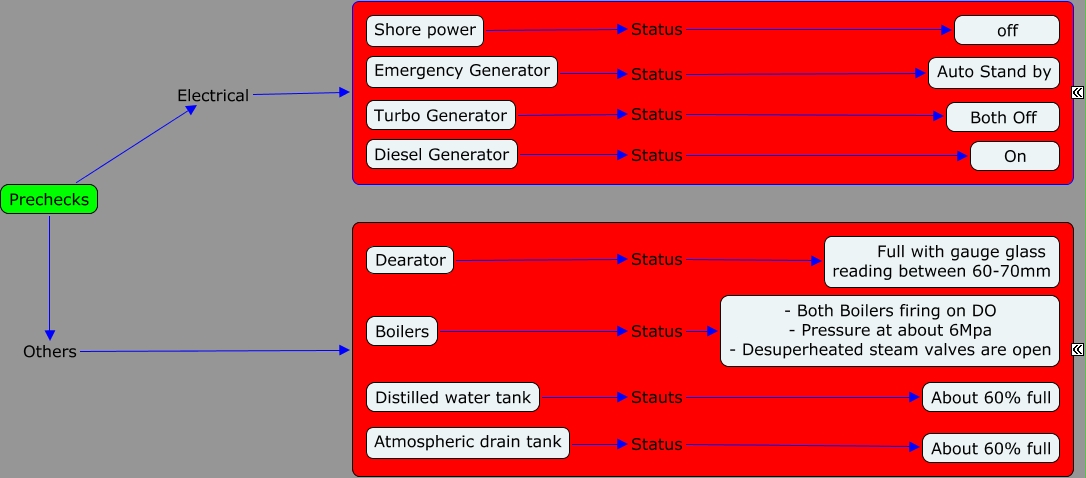

This Concept Map, created with IHMC CmapTools, has information related to: Node_07a_Prechecks for opening Steam Regulators, Diesel Generator Status On, Emergency Generator Status Auto Stand by, Prechecks Others Click to expand, Distilled water tank Stauts About 60% full, Dearator Status Full with gauge glass reading between 60-70mm, Atmospheric drain tank Status About 60% full, Turbo Generator Status Both Off, Boilers Status - Both Boilers firing on DO - Pressure at about 6Mpa - Desuperheated steam valves are open, Shore power Status off, Prechecks Electrical Click to Expand
