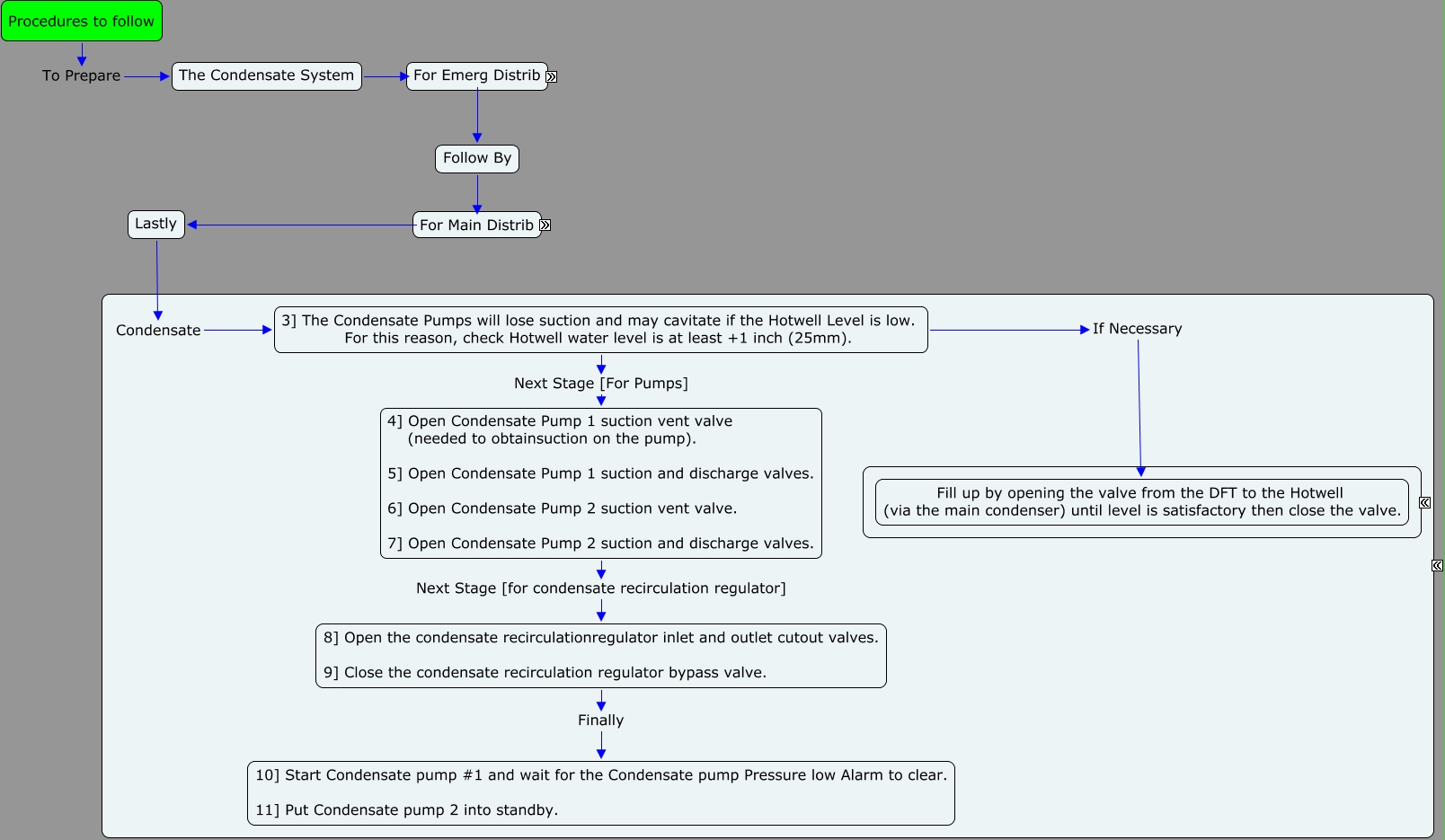

This Concept Map, created with IHMC CmapTools, has information related to: Node_15b_Procedure to Start Condensate Extraction, 8] Open the condensate recirculationregulator inlet and outlet cutout valves. 9] Close the condensate recirculation regulator bypass valve. Finally 10] Start Condensate pump #1 and wait for the Condensate pump Pressure low Alarm to clear. 11] Put Condensate pump 2 into standby., The Condensate System Emerg Distrib 1] Close the Condensate Pump 1 Breaker, 4] Open Condensate Pump 1 suction vent valve (needed to obtainsuction on the pump). 5] Open Condensate Pump 1 suction and discharge valves. 6] Open Condensate Pump 2 suction vent valve. 7] Open Condensate Pump 2 suction and discharge valves. Next Stage [for condensate recirculation regulator] 8] Open the condensate recirculationregulator inlet and outlet cutout valves. 9] Close the condensate recirculation regulator bypass valve., Procedures to follow To Prepare The Condensate System, Follow By Main Distrib Lastly, 3] The Condensate Pumps will lose suction and may cavitate if the Hotwell Level is low. For this reason, check Hotwell water level is at least +1 inch (25mm). If Necessary Fill up by opening the valve from the DFT to the Hotwell (via the main condenser) until level is satisfactory then close the valve., Follow By Main Distrib 2] Close the Condensate Pump 2 Breaker, The Condensate System Emerg Distrib Follow By, 3] The Condensate Pumps will lose suction and may cavitate if the Hotwell Level is low. For this reason, check Hotwell water level is at least +1 inch (25mm). Next Stage [For Pumps] 4] Open Condensate Pump 1 suction vent valve (needed to obtainsuction on the pump). 5] Open Condensate Pump 1 suction and discharge valves. 6] Open Condensate Pump 2 suction vent valve. 7] Open Condensate Pump 2 suction and discharge valves., Lastly Condensate 3] The Condensate Pumps will lose suction and may cavitate if the Hotwell Level is low. For this reason, check Hotwell water level is at least +1 inch (25mm).
