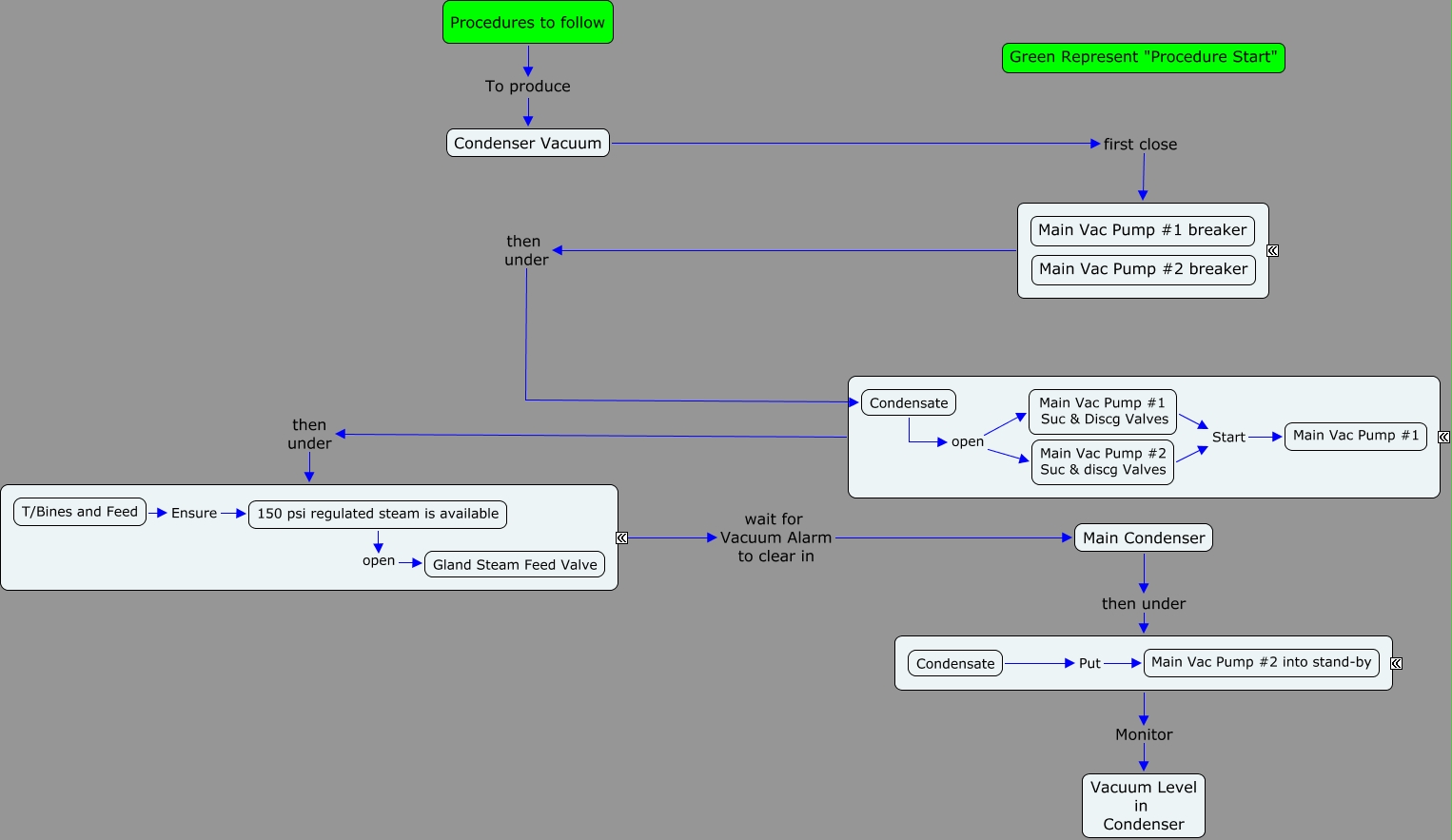

This Concept Map, created with IHMC CmapTools, has information related to: Node_12_Procedure_for Starting Condenser Vacuum, Main Vac Pump #1 Suc & Discg Valves Start Main Vac Pump #1, T/Bines and Feed Ensure 150 psi regulated steam is available, Condensate Put Main Vac Pump #2 into stand-by, Condensate open Main Vac Pump #2 Suc & discg Valves, Condensate open Main Vac Pump #1 Suc & Discg Valves, T/Bines and Feed ---> wait for Vacuum Alarm to clear in Main Condenser, Condensate ---> then under T/Bines and Feed --->, Main Condenser then under Condensate --->, Condenser Vacuum first close Breakers, Condensate ---> Monitor Vacuum Level in Condenser, Procedures to follow To produce Condenser Vacuum, Main Vac Pump #2 Suc & discg Valves Start Main Vac Pump #1, 150 psi regulated steam is available open Gland Steam Feed Valve, Breakers then under Condensate
