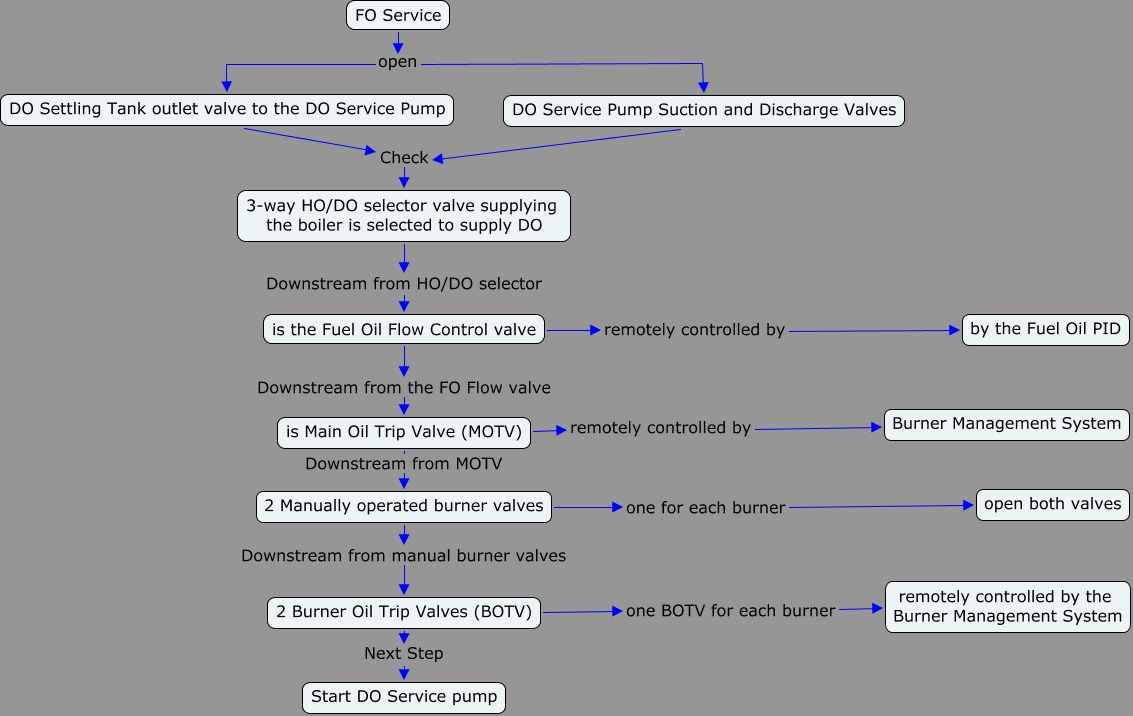

This Concept Map, created with IHMC CmapTools, has information related to: Node_03e FO service, FO Service open DO Service Pump Suction and Discharge Valves, is Main Oil Trip Valve (MOTV) remotely controlled by Burner Management System, is the Fuel Oil Flow Control valve Downstream from the FO Flow valve is Main Oil Trip Valve (MOTV), 3-way HO/DO selector valve supplying the boiler is selected to supply DO Downstream from HO/DO selector is the Fuel Oil Flow Control valve, is the Fuel Oil Flow Control valve remotely controlled by by the Fuel Oil PID, 2 Burner Oil Trip Valves (BOTV) Next Step Start DO Service pump, 2 Manually operated burner valves one for each burner open both valves, DO Settling Tank outlet valve to the DO Service Pump Check 3-way HO/DO selector valve supplying the boiler is selected to supply DO, FO Service open DO Settling Tank outlet valve to the DO Service Pump, DO Service Pump Suction and Discharge Valves Check 3-way HO/DO selector valve supplying the boiler is selected to supply DO, 2 Manually operated burner valves Downstream from manual burner valves 2 Burner Oil Trip Valves (BOTV), is Main Oil Trip Valve (MOTV) Downstream from MOTV 2 Manually operated burner valves, 2 Burner Oil Trip Valves (BOTV) one BOTV for each burner remotely controlled by the Burner Management System
