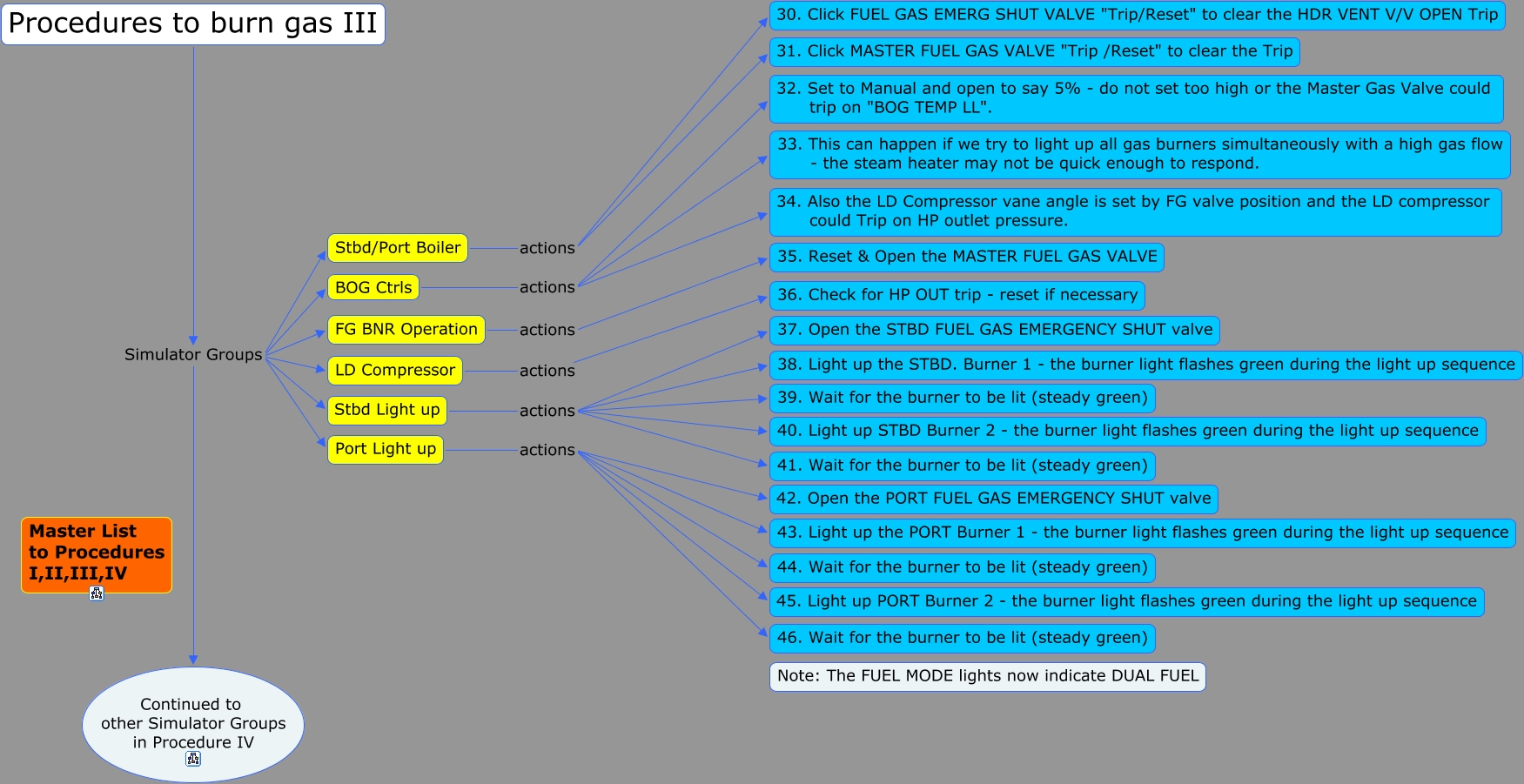

This Concept Map, created with IHMC CmapTools, has information related to: Node_18d_Procedure to burn gas - III, Port Light up actions 42. Open the PORT FUEL GAS EMERGENCY SHUT valve, Stbd Light up actions 37. Open the STBD FUEL GAS EMERGENCY SHUT valve, Procedures to burn gas III Simulator Groups Continued to other Simulator Groups in Procedure IV, Procedures to burn gas III Simulator Groups Port Light up, Stbd Light up actions 40. Light up STBD Burner 2 - the burner light flashes green during the light up sequence, Procedures to burn gas III Simulator Groups Stbd Light up, Port Light up actions 44. Wait for the burner to be lit (steady green), BOG Ctrls actions 33. This can happen if we try to light up all gas burners simultaneously with a high gas flow - the steam heater may not be quick enough to respond., Port Light up actions 46. Wait for the burner to be lit (steady green), Port Light up actions 45. Light up PORT Burner 2 - the burner light flashes green during the light up sequence, LD Compressor actions 36. Check for HP OUT trip - reset if necessary, Stbd Light up actions 38. Light up the STBD. Burner 1 - the burner light flashes green during the light up sequence, Stbd Light up actions 39. Wait for the burner to be lit (steady green), Stbd Light up actions 41. Wait for the burner to be lit (steady green), FG BNR Operation actions 35. Reset & Open the MASTER FUEL GAS VALVE, Stbd/Port Boiler actions 30. Click FUEL GAS EMERG SHUT VALVE "Trip/Reset" to clear the HDR VENT V/V OPEN Trip, Procedures to burn gas III Simulator Groups Stbd/Port Boiler, BOG Ctrls actions 34. Also the LD Compressor vane angle is set by FG valve position and the LD compressor could Trip on HP outlet pressure., Procedures to burn gas III Simulator Groups LD Compressor, Stbd/Port Boiler actions 31. Click MASTER FUEL GAS VALVE "Trip /Reset" to clear the Trip
