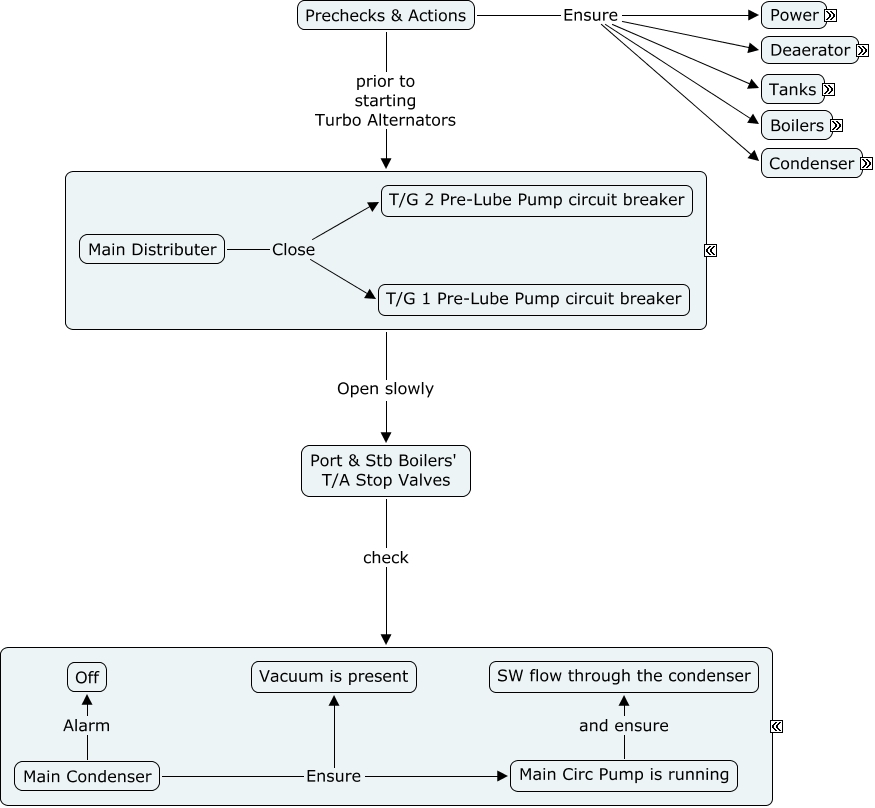

This Concept Map, created with IHMC CmapTools, has information related to: Node_13a_Prechecks for TA starting, Main Condenser Ensure Vacuum is present, Tanks Distilled Water Tank (DWT) About 60% full, Main Distributer Close T/G 1 Pre-Lube Pump circuit breaker, Boilers Boiler 2 Pressure, Tanks Atmospheric Drain Tank (ADT) About 60% full, Port & Stb Boilers' T/A Stop Valves check Main Condenser, Main Distribute Open slowly Port & Stb Boilers' T/A Stop Valves, Electrical Power Turbo Generator 1 On, Prechecks & Actions Ensure Boilers, Boilers Boiler 1 Pressure, Main Circ Pump is running and ensure SW flow through the condenser, Condenser Condenser Vacuum Satisfactory and Cooling on, Prechecks & Actions Ensure Tanks, Deaerator Full with guage glass reading Between 60~70 mm, Electrical Power Shore Power Off, Electrical Power Turbo Generator 2 Off, Main Condenser Alarm Off, Prechecks & Actions Ensure Power, Prechecks & Actions Ensure Deaerator, Prechecks & Actions Ensure Condenser
