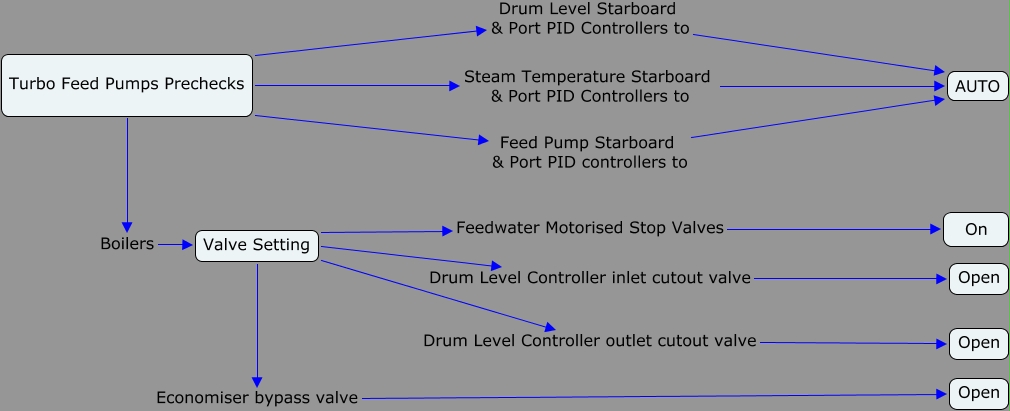

This Concept Map, created with IHMC CmapTools, has information related to: Node_04b_Auto control system procedure, Turbo Feed Pumps Prechecks Drum Level Starboard & Port PID Controllers to AUTO, Valve Setting Drum Level Controller inlet cutout valve Open, Valve Setting Feedwater Motorised Stop Valves On, Turbo Feed Pumps Prechecks Feed Pump Starboard & Port PID controllers to AUTO, Turbo Feed Pumps Prechecks Boilers Valve Setting, Turbo Feed Pumps Prechecks Steam Temperature Starboard & Port PID Controllers to AUTO, Valve Setting Drum Level Controller outlet cutout valve Open, Valve Setting Economiser bypass valve Open
