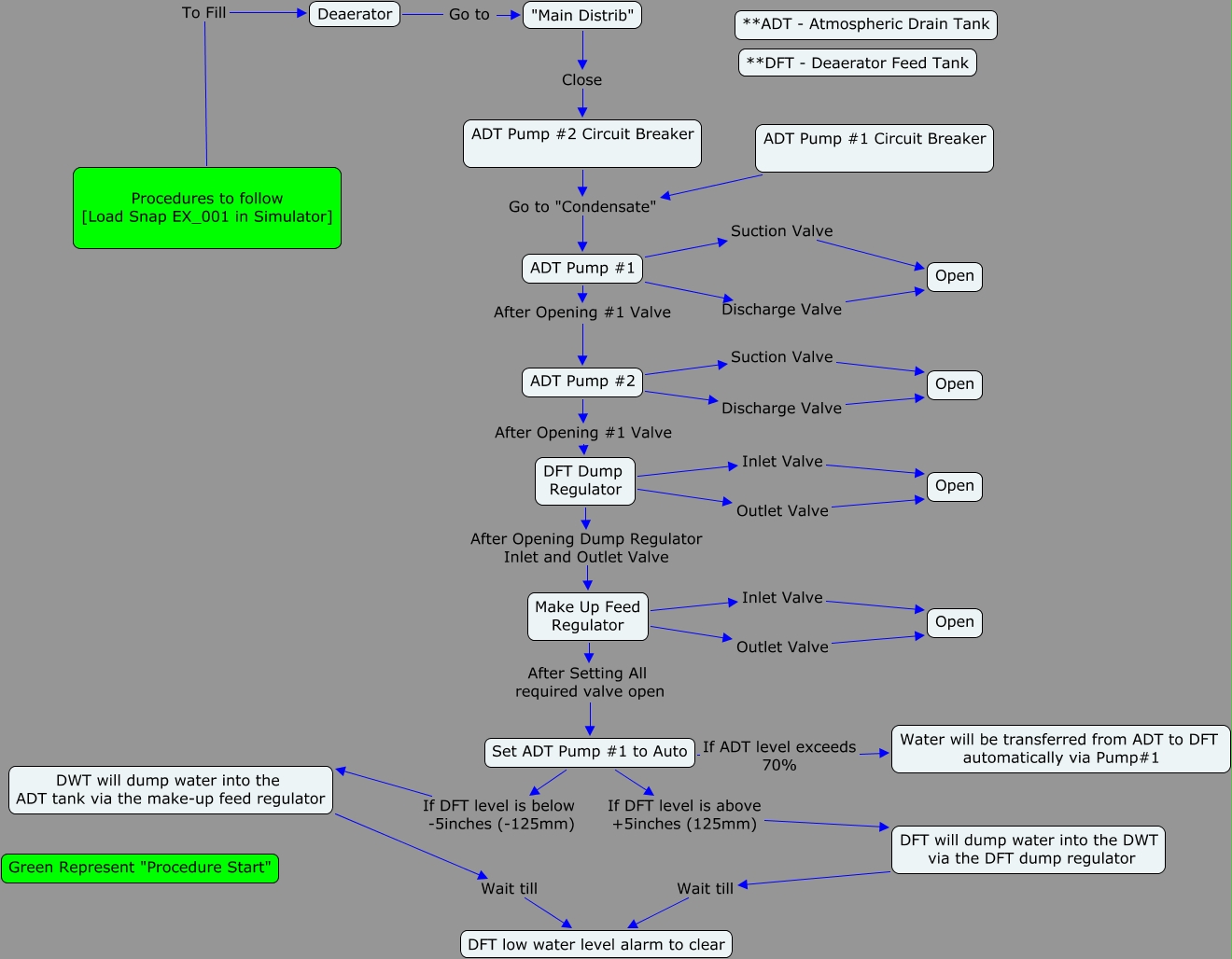

This Concept Map, created with IHMC CmapTools, has information related to: Node_01b_Filling Deaerator, ADT Pump #1 Circuit Breaker Go to "Condensate" ADT Pump #1, DFT will dump water into the DWT via the DFT dump regulator Wait till DFT low water level alarm to clear, ADT Pump #1 After Opening #1 Valve ADT Pump #2, ADT Pump #2 After Opening #1 Valve DFT Dump Regulator, Set ADT Pump #1 to Auto If DFT level is above +5inches (125mm) DFT will dump water into the DWT via the DFT dump regulator, Make Up Feed Regulator Inlet Valve Open, ADT Pump #1 Suction Valve Open, Set ADT Pump #1 to Auto If DFT level is below -5inches (-125mm) DWT will dump water into the ADT tank via the make-up feed regulator, Make Up Feed Regulator Outlet Valve Open, ADT Pump #2 Circuit Breaker Go to "Condensate" ADT Pump #1, DWT will dump water into the ADT tank via the make-up feed regulator Wait till DFT low water level alarm to clear, "Main Distrib" Close ADT Pump #2 Circuit Breaker, DFT Dump Regulator After Opening Dump Regulator Inlet and Outlet Valve Make Up Feed Regulator, ADT Pump #2 Suction Valve Open, Set ADT Pump #1 to Auto If ADT level exceeds 70% Water will be transferred from ADT to DFT automatically via Pump#1, DFT Dump Regulator Outlet Valve Open, Deaerator Go to "Main Distrib", DFT Dump Regulator Inlet Valve Open, Procedures to follow [Load Snap EX_001 in Simulator] To Fill Deaerator, Make Up Feed Regulator After Setting All required valve open Set ADT Pump #1 to Auto
