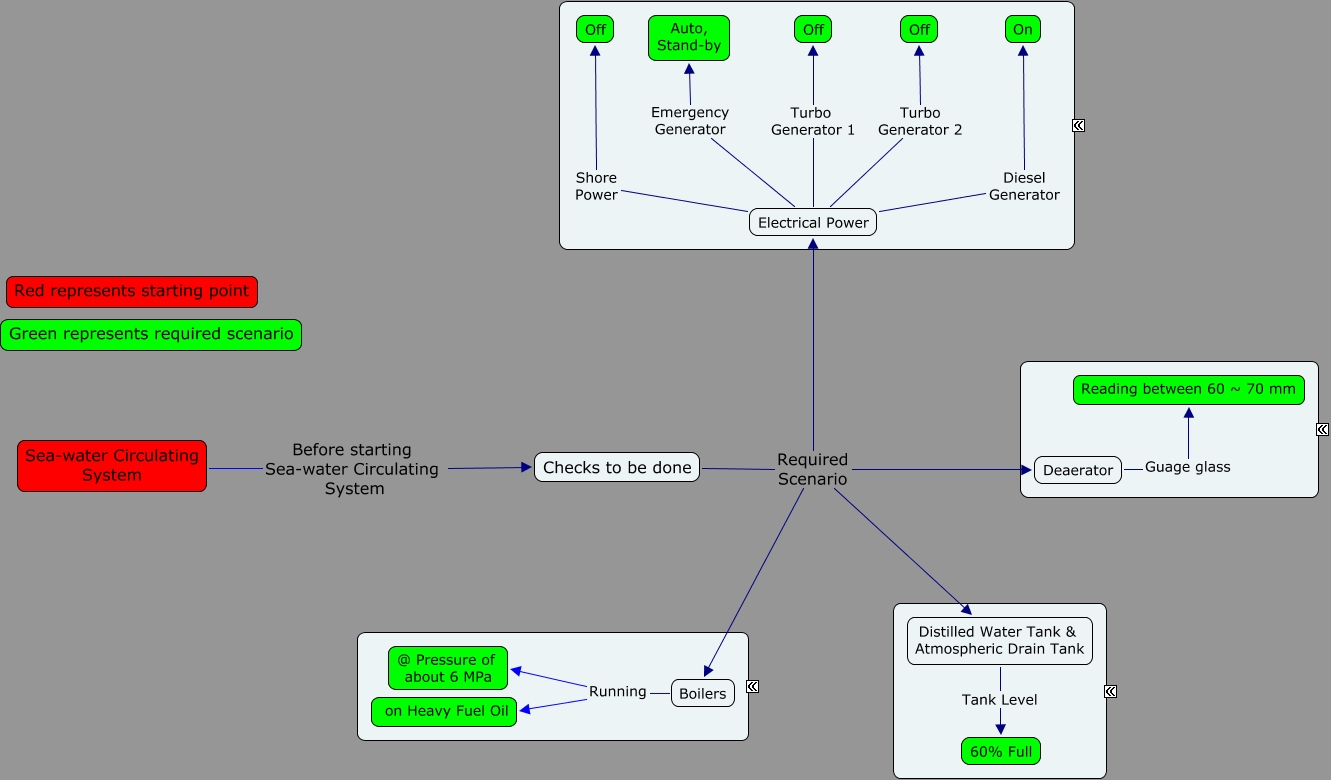

This Concept Map, created with IHMC CmapTools, has information related to: Node_11_Prechecks_beforeStarting_SW_Circ_PP, Checks to be done Required Scenario Deaerator, Electrical Power Diesel Generator On, Deaerator Guage glass Reading between 60 ~ 70 mm, Electrical Power Emergency Generator Auto, Stand-by, Boilers Running on Heavy Fuel Oil, Electrical Power Turbo Generator 2 Off, Distilled Water Tank & Atmospheric Drain Tank Tank Level 60% Full, Checks to be done Required Scenario Boilers, Checks to be done Required Scenario Electrical Power, Sea-water Circulating System Before starting Sea-water Circulating System Checks to be done, Checks to be done Required Scenario Distilled Water Tank & Atmospheric Drain Tank, Electrical Power Turbo Generator 1 Off, Electrical Power Shore Power Off, Boilers Running @ Pressure of about 6 MPa
